General

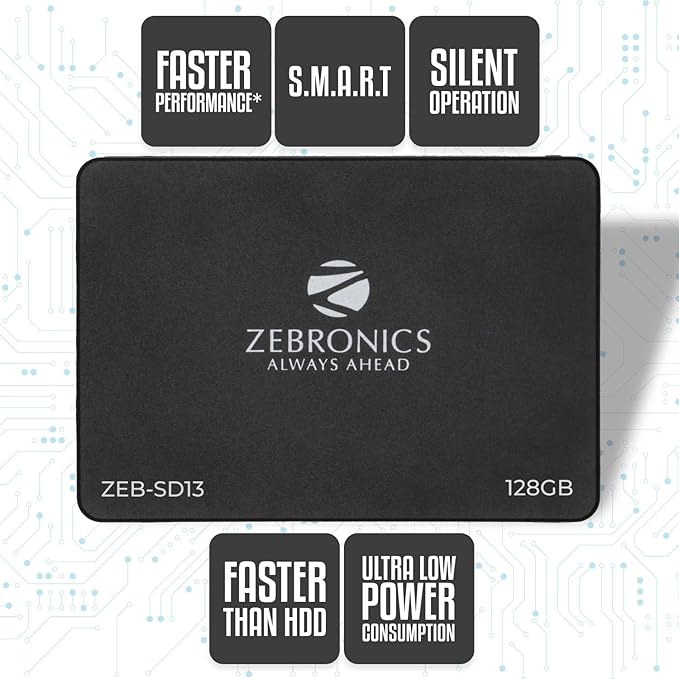

• Model: SD13

• Type: Internal Solid State Drive (SSD)

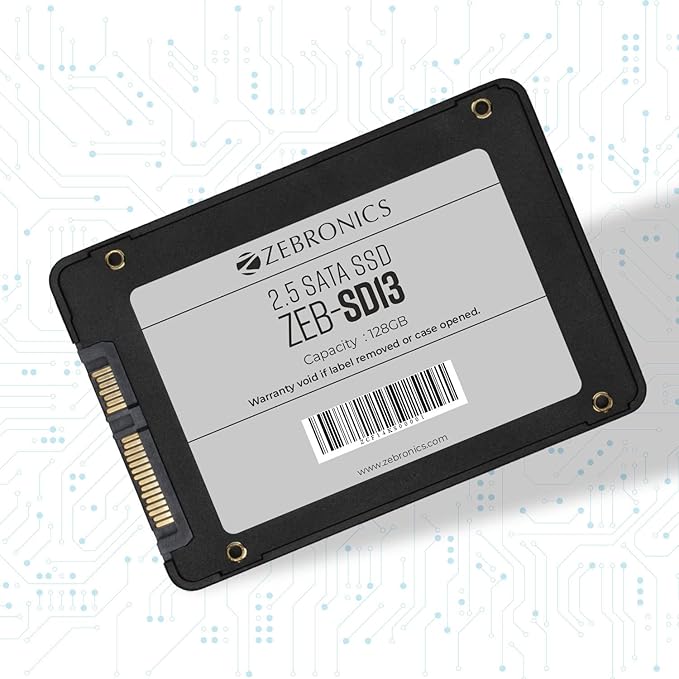

• Form Factor: 2.5-inch

• Interface: SATA III (6 Gb/s), backward compatible with SATA II (3 Gb/s) and SATA I (1.5 Gb/s)

• Capacity: 128GB

Performance

• Sequential Read Speed: Up to 500 MB/s

• Sequential Write Speed: Up to 400 MB/s

• Random 4K Read: Up to 65,000 IOPS

• Random 4K Write: Up to 70,000 IOPS

• Latency: <0.1 ms

Features

• Ultra-Low Power Consumption: Optimized for energy efficiency, suitable for laptops and PCs.

• S.M.A.R.T. Support: Self-Monitoring, Analysis, and Reporting Technology for drive health monitoring.

• Thermal Management: Built-in thermal control for safe and consistent performance.

• Silent Operation: No moving parts, vibration-free functioning.

• Shock & Vibration Resistant: Up to 1500G shock resistance.

Reliability

• MTBF (Mean Time Between Failures): 1.5 million hours

• Endurance (TBW): Approx. 70 TBW

• Error Correction: Advanced ECC (Error Correction Code) for data reliability

Physical

• Dimensions: 100mm x 69.85mm x 7mm

• Weight: Approx. 40g

Power

• Power Consumption (Active): <2.5W

• Power Consumption (Idle): <0.5W

Operating Conditions

• Operating Temperature: 0°C to 70°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% (non-condensing)

Compatibility

• Compatible with laptops, desktops, and other devices supporting 2.5" SATA SSDs.

• Supports Windows, Linux, and Mac OS.
