General Information

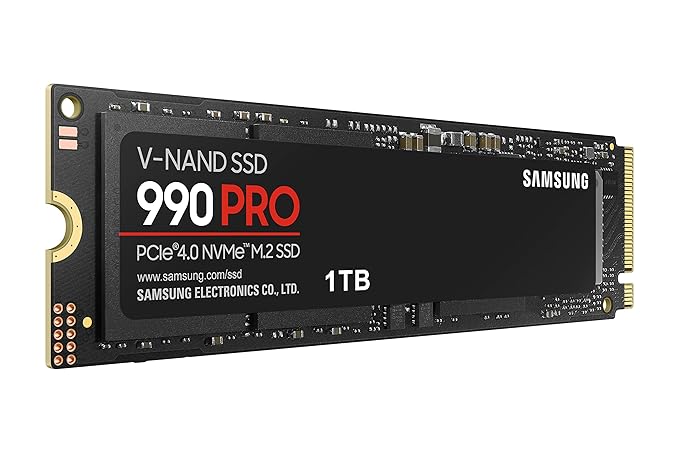

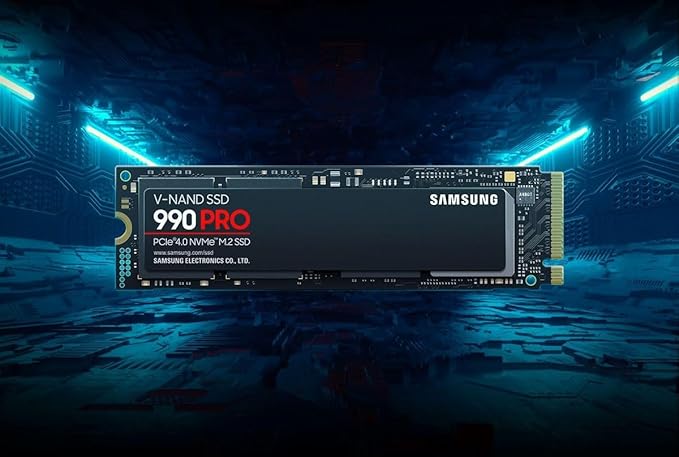

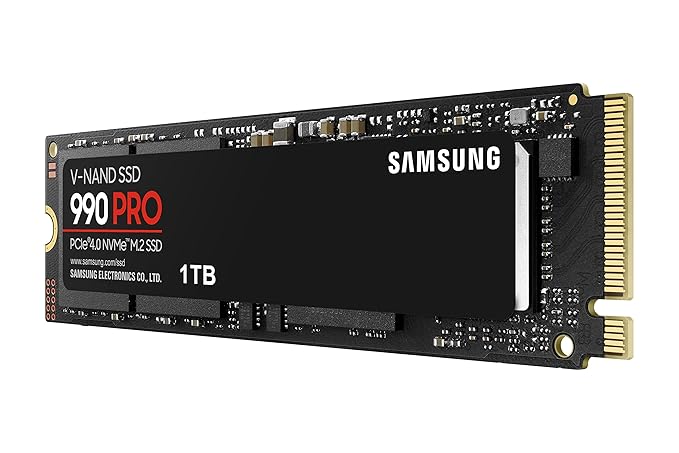

• Model: Samsung 990 PRO

• Capacity: 1TB

• Form Factor: M.2 2280

• Interface: PCIe Gen 4.0 x4, NVMe 2.0

• Application: High-end computing, gaming, video editing, 3D rendering, and heavy-duty workstations

Performance

• Sequential Read Speed: Up to 7,450 MB/s

• Sequential Write Speed: Up to 6,900 MB/s

• Random Read (4KB, QD32): Up to 1,400K IOPS

• Random Write (4KB, QD32): Up to 1,550K IOPS

• Latency (Read/Write): Extremely low for high responsiveness

Reliability & Endurance

• MTBF (Mean Time Between Failures): 1.5 million hours

• TBW (Total Bytes Written): 600 TBW (1TB variant)

• Data Security: AES 256-bit hardware-based encryption, TCG/Opal, IEEE1667 compliance

• SMART Support: Yes

• TRIM Support: Yes

Power Consumption

• Active (Average): ~5.4W

• Idle: ~50mW

• Power Efficiency: Up to 50% improved over Samsung 980 PRO

• Operating Voltage: 3.3V ± 5%

Physical Dimensions

• Form Factor: M.2 (2280)

• Dimensions: 80.15 x 22.15 x 2.3 mm

• Weight: Approx. 9 grams

Compatibility

• Supported Systems: Desktops, laptops, and workstations with M.2 PCIe Gen 4 slot

• Backward Compatibility: PCIe Gen 3.0 supported (with reduced performance)

• Operating System Support: Windows®, macOS®, Linux®

Software

• Samsung Magician Software:

  • Performance benchmarking

  • Firmware updates

  • Drive health & temperature monitoring

  • Secure erase function
